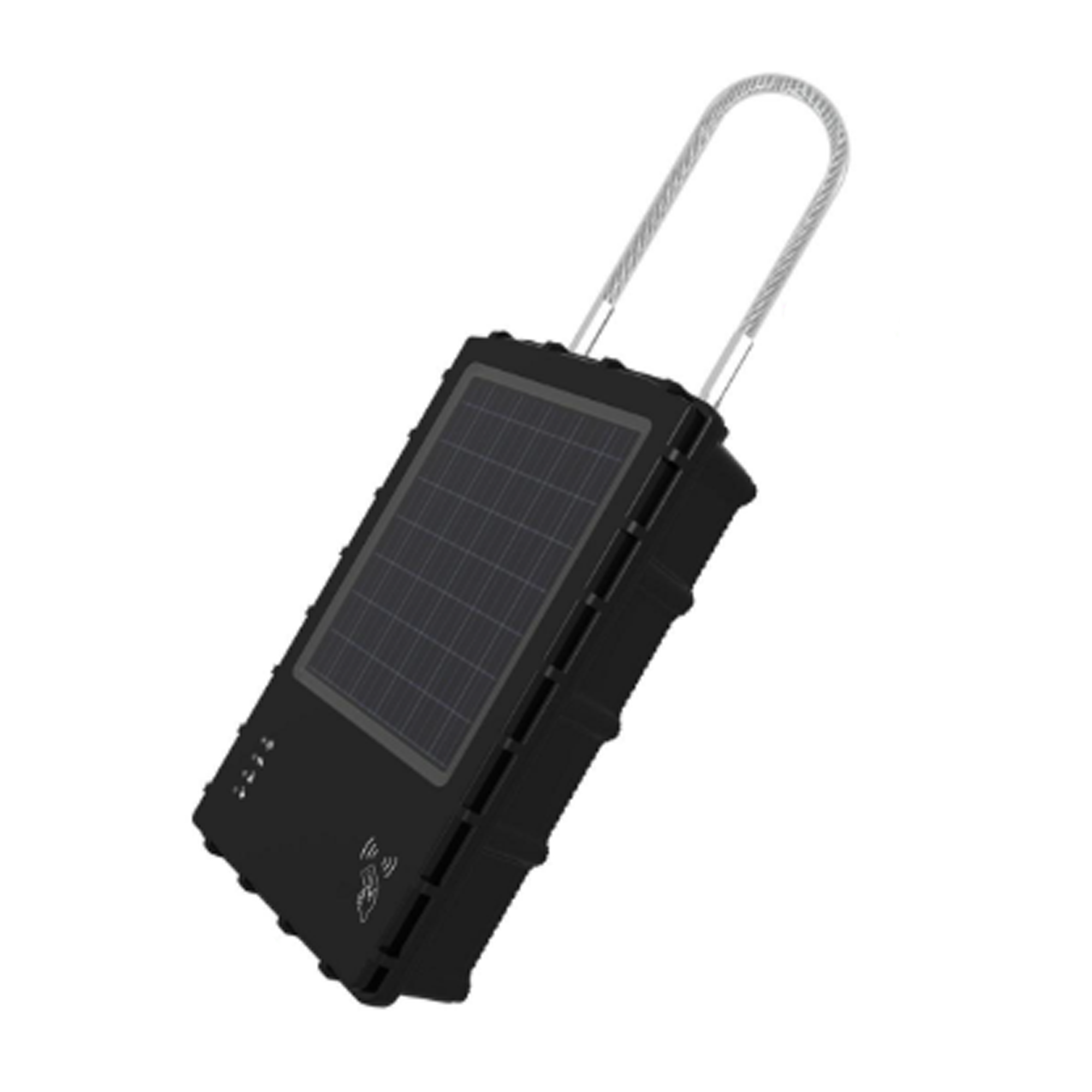

HB-A1SP
4G Solar GPS Electronic Lock and Asset Tracking Device
The HB-A1SP is a solar-powered GPS electronic lock built for container tracking and long-haul cargo security. It combines a rugged, explosion-proof padlock body with real-time tracking, 4G connectivity, and a 15,200 mAh battery topped up by an optional solar panel, so your assets stay visible on extended routes without frequent charging. As a solar GPS tracker and asset tracking device, it supports RFID ID card unlocking, Bluetooth 4.0 app unlocking, and remote 4G access, while its IP67 waterproof shell stands up to dust, rain, and harsh outdoor conditions. It is a dependable choice for fleets, exporters, and logistics operators across Qatar and the wider region.
Solar GPS Tracker
Optional solar panel and large battery keep the device powered on long routes
Real-Time Tracking
GPS and BeiDou positioning for live location and status updates
RFID ID Card Unlocking
Keyless access with an RFID card at close range
Bluetooth 4.0 App Unlocking
Unlock from the mobile app at up to 20 metres
IP67 Waterproof
Sealed against dust and water for reliable outdoor use
Intelligent Alarm
Instant alerts for tampering and unauthorised access
Specification
Physical Specifications
| Dimensions | 209 x 115 x 51 mm (L x W x H) |
| Chain length | 300 mm |
| Weight | 1150 g |
| Shell material | Flame retardant PC |
| Lock rod seal resistance | 1000 kg |
| Ingress protection | IP67 |
| Positioning | GPS, BeiDou |
| Receiver | 64 channel |
| Tracking sensitivity | -162 dBm |
| Accuracy | Under 10 m |
| Hot / Warm / Cold start | Under 1 s / 5 s / 32 s |
| Technology | 4G LTE FDD / WCDMA / GSM |
| Data support | TCP / FTP / SMS (text and data) |
| RFID | Sensor range less than 2.5 cm |
| Bluetooth | Bluetooth 4.0 BLE, 20 m range |
| 4G / GPRS and SMS | No distance limit |
| Main battery | 15,200 mAh Li-Ion, 3.7 V (55.5 Wh) |
| USB charging | 5V DC at 2A |
| Solar charging current | 250 mA/h |
| Charging time | 10 hours |
| Standby time | Up to 31 days without solar charging (10-minute reporting) |
| Operating temperature | -40 °C to +85 °C |
| Storage temperature | -40 °C to +85 °C |
| Operating humidity | 0% to 100% non-condensing |
| Data storage | NAND Flash 8 MB, up to 3800 dead zone records |
| Installation method | Magnet adsorption |
| Regulatory | CE, ATEX |
Applications
| Shipping container tracking and door security |
| Cross-border and long haul cargo movements |
| Tanker, trailer, and logistics vehicle monitoring |
| High-value and theft-prone cargo protection |
| Outdoor assets that need solar-powered tracking |
| Fleet and asset management for operators in Qatar |
Key Features
| Solar GPS Tracker | Solar panel and 15,200 mAh battery for extended runtime |
| Real-Time Tracking | GPS and BeiDou positioning with live location updates |
| RFID ID Card Unlocking | Keyless access using an RFID card |
| Bluetooth 4.0 App Unlocking | Unlock from the mobile app at up to 20 m |
| IP67 Waterproof | Sealed against dust and water, ATEX explosion-proof shell |
| Anti-Tamper Alarm | Instant alerts for cutting, opening, and illegal unlocking |
