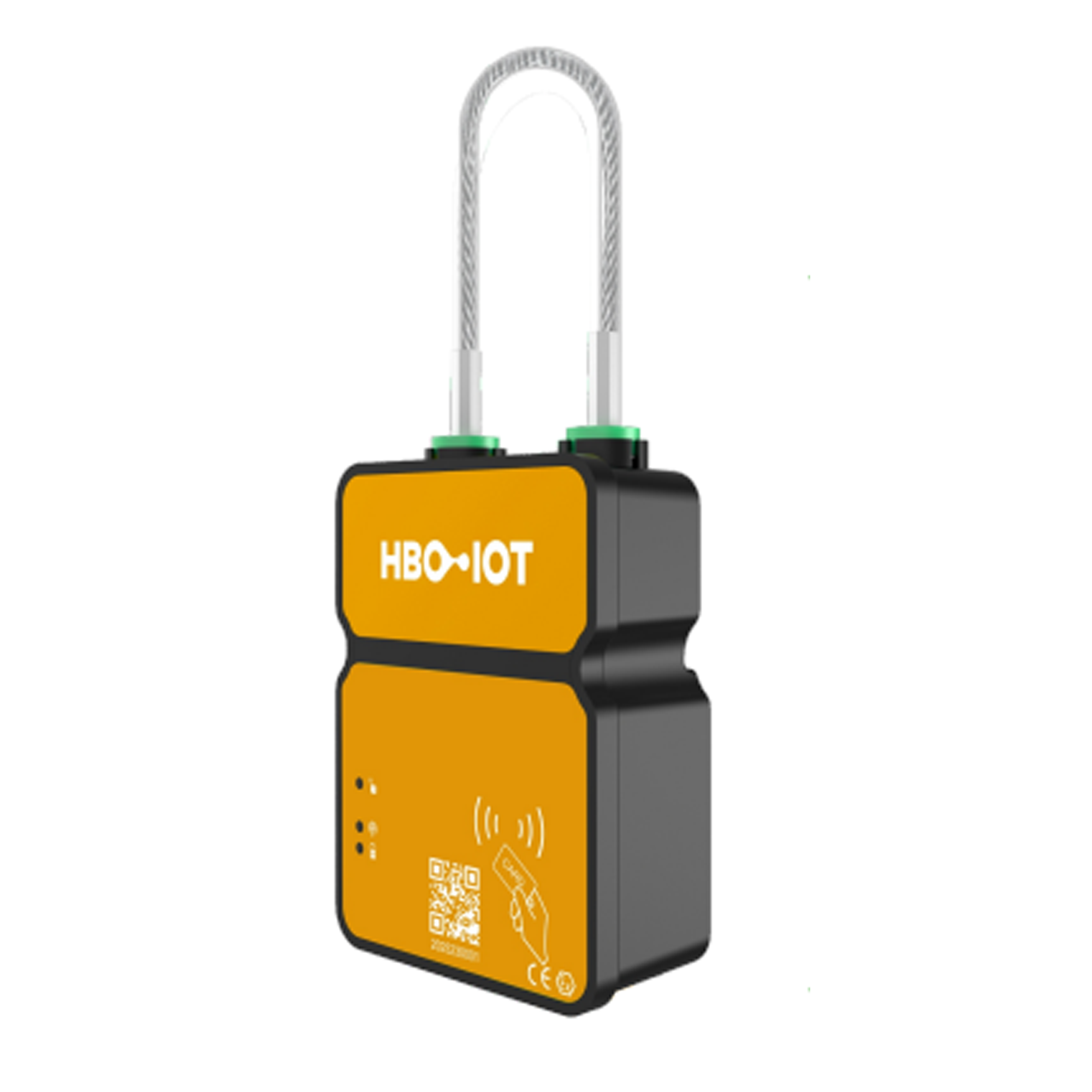

HB-A1Ms
Explosion-Proof Sub-Lock for Multi-Lock Cargo Security
The HB-A1Ms is a compact explosion-proof sub-lock that works alongside a master GPS e-lock to secure extra doors and compartments. Rather than carrying its own SIM, it pairs over Bluetooth with a master unit, which relays its status to your tracking platform, cutting costs across multi-door shipments.
With an IP67 waterproof and ATEX explosion-proof shell, RFID access, and an intelligent alarm, it is a rugged smart security lock for containers, tankers, logistics vehicles and safe boxes. Lightweight and long-lasting, the HB-A1Ms is a practical electronic cargo lock for fleets and logistics operators across Qatar and the region.

Explosion-Proof Sub-Lock
Rugged ATEX explosion-proof shell for hazardous cargo environments
IP67 Waterproof
Sealed against dust and water for reliable outdoor use
Compact & Lightweight
Small 494 g body adds locking points without extra bulk
RFID Access
Keyless unlocking via RFID card or the Bluetooth app
Intelligent Alarm
Instant alerts for tampering and unauthorised access
Super Long Standby
Up to 90 days of standby on a single charge
Specification
| Dimensions | 124 x 95 x 47 mm (L x W x H) |
| Chain length | 300 mm |
| Weight | 494 g |
| Shell material | Flame retardant PC |
| Lock rod seal resistance | 1000 kg |
| Ingress protection rating | IP67 |
| RFID | Sensing distance 2.5 cm |
| Bluetooth | Bluetooth 4.0 BLE, communication distance 20 m |
| Connection | Pairs with a master lock over Bluetooth |
| Main battery | 2,950 mAh Li-Ion, 3.7 V (10.9 Wh) |
| Charging voltage | 5V DC @ 2A |
| Charging time | 3 hours |
| Standby time (10 min/data) | Up to 90 days |
| Operating temperature | -30 to +70 degrees C |
| Storage temperature | -40 to +85 degrees C |
| Battery charge temperature | 0 to +45 degrees C |
| Operating humidity | 5% to 95% non-condensing |
| Regulatory | CE, ATEX |
Applications
| Additional locking points on multi-door containers |
| Tanker and trailer secondary locking |
| Logistics vehicle cargo compartments |
| Safe box and high value asset locking |
| Multi-lock setups alongside a master GPS e-lock |
| Container security for logistics operators in Qatar |
Key Features
| Explosion-Proof Sub-Lock | ATEX shell secures extra doors alongside a master lock |
| IP67 Waterproof | Sealed against dust and water for outdoor cargo use |
| Compact Smart Security Lock | Light 494 g body for tight fittings and easy install |
| RFID & Bluetooth Access | Keyless unlocking without physical keys |
| Intelligent Alarm | Instant alerts for opening, tampering, and illegal unlocking |
| Long Standby | Up to 90 days of runtime on a single charge |
